OVERVIEW

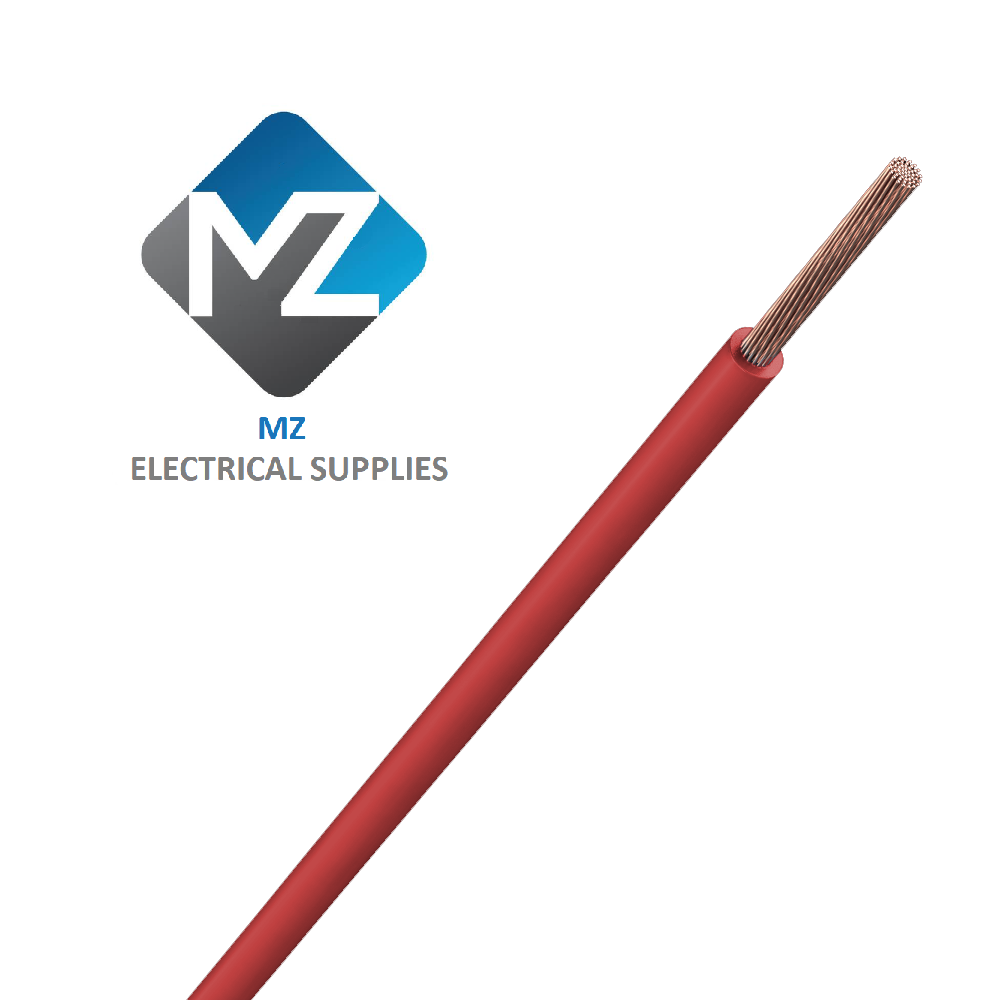

The British standard Tri-Rated cable is sometimes referred to as panel wiring cable due to its application and purpose. It is a high temperature, flame retardant cable designed for use in instrumentation panels, motor starters or power switchgear. The cable features flexible plain annealed copper conductors and a circular high temperature PVC outer sheath. UL & CSA approved also to BS6231.
STANDARDS
- Flame propagation to BS EN 50265, IEC 60332-1
- BS6231
- UL 1015
- BS EN 50525-2-31
CONSTRUCTION
- Conductor: Flexible plain annealed copper conductors
- Sheath: Circular high temperature PVC outer sheath in a large range of colours
CHARACTERISTICS
- Voltage Rating: 600/1000 volts
- Temperature Limits: -30°C to +105°C
- Minimum Bending Radius: As per cable manufacturer datasheet
| Colour | Red |
| Conductor | 0.5mm² |
| Stranding | 16/0.20 |
| Weight | 12kg/km |
| Diameter | 2.7mm |
